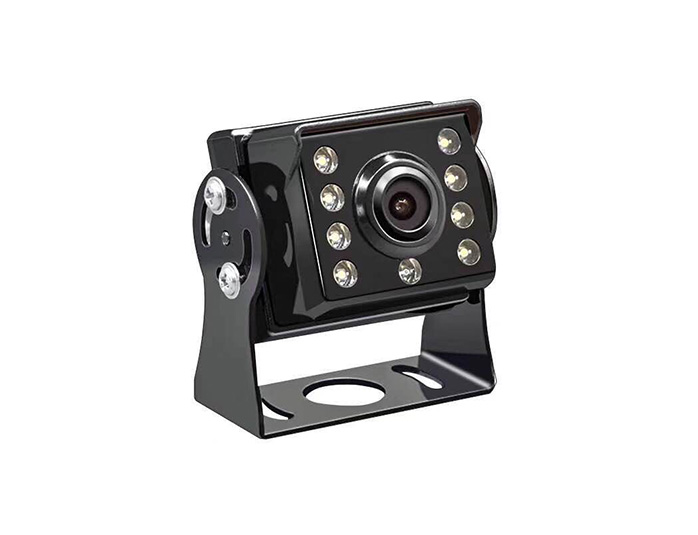

TYD-917C8 square potting glue 720P
  • TYD-917C8 square potting glue 720P
TYD-917C8 square potting glue 720P
Full HD 1 million pixel CMOS imaging device, each frame of pixels reaches 1 million, making the image definition higher, the highest definition reaches 18000TVL (B/W2000TVL).
The color reproduction is perfect, and there is almost no color cast.
The brand-new digital exposure function can obtain good image effects under different light and strong contrast conditions.
High temperature resistance, the dark level is very stable under high temperature work, and there are no black vertical bars or white light lines in night vision.
Support area motion detection function, support area privacy masking, each area size can be edited separately.
3D digital noise reduction technology reduces the graininess of the picture due to automatic gain in low-light environments.
Digital zoom function, you can zoom in on small screens.
The automatic frame accumulation function makes the night vision effect to a higher level.
The menu button switches between AHD and CVBS, which is convenient for customers to use different backends (using AHD DVR or 960H DVR).
OSD menu operation is more intuitive and convenient.
4000V video lightning protection, anti-static interference circuit design, -20~80℃ operating temperature range, fundamentally improve the environmental adaptability of the equipment.
support hotline:
0755-29470519
Product Details

structure size

The structure size is shown in the figure below, the unit is millimeters, and the error is ±0.5mm. The outer dimensions of the product: length 52.70mm, width: 37.50mm, height 56.75mm (as shown in the figure below).

Product parameter
model TYD-917C8
Effective Pixels 1280(H)×720(V)
Standard PAL
SYNC INNER SYNC
shutter 1/53~1/100000s;
Automatic gain AGC/ AGC + Slow   shutter
Signal-to-noise ratio >52dB(AGC OFF)
Video output standard 1.0Vp-p,75Ω
Resolution 720P
Minimum illumination Color 0.5Lux(50IRE,AGC   ON) /W:0.01Lux(50IRE,AGC ON)
Color black and white conversion Color /Auto
Color black and white conversion time control 0~255
Lens 2.1MM
Privacy zone 1~15zones
Motion detection 4 Zones
Video interface Aviation head
White balance ATW /PUSH/User1/ User   2/ Manual/ANTI CR/PUSH  LOCK
Title Can   be set
Title Position Any   position on the screen
DNR High/Medium   to high/Medium/Low to medium/Low/Off
Pic contrast 0-63
Pic sharpness 0-15
Audio none
power supply DC12V±10%   (AC24V optional)
Protection level IP67
Current The current of the infrared lamp on/off is: 192mA/58mA±10%
Operating temperature -20℃~80℃
Working humidity <90%
storage temperature -400C~+800C

Standard configuration
Serial number Name quantity unit Remark
1 Glue waterproof camera 1 Only Standard

Connector description


1 VCC-12V power supply
2 GND-ground
3 Audio signal (optional)
4 video signal
